• Recessed fixed LED downlighter for hotels & retail in cabinet
• Construction in extruded CNC machined aluminium
• Polyester powder coated with high U.V. & corrosion resistance
• Fixture holding system using SS-304 fastening clips
• Strain relief cable clamp
• Extruded aluminium for better heatsink of LED
• Ceiling thickness 3 to 30mm
• Wire for mains supply cable 2c×1.5mm2
• Quick connect LED harness
• Electronic control gear integrated, THD<15%, PF>0.95%
4000K

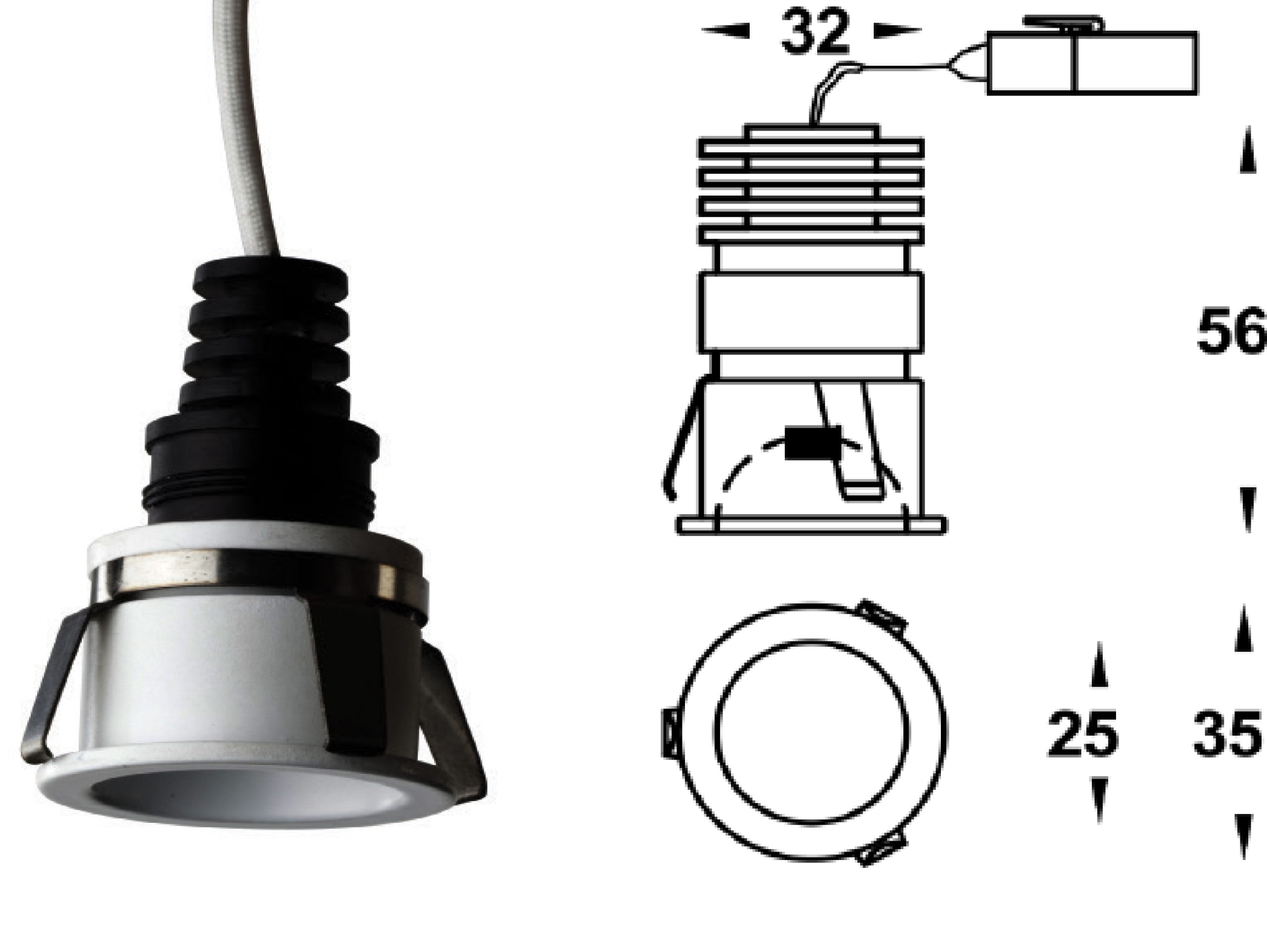

CEILING RECESSED FIXED CAVE RN LED 2W 2700K WHITE IP 20
• Make a cut out of dia 32mm. at the location in the recess where the luminaire has to be installed.
• Place the transformer more than 20cm and less than 200cm away from cut out.
• Lead 2 wires from mains and connect on transformer # 03 input, connect the quick connector male # 04 with female.
• Push the luminaire in ceiling cut out so that fixture holding clip # 02 holds the fixture positively.
• Switch on the mains & test the luminaire.
• The installation is now complete.
| IP Protection Rating |
IP 20 |
|---|---|
| CCT |
4000K |
Description
Additional information
| IP Protection Rating |
IP 20 |
|---|---|
| CCT |
4000K |
