CONSTRUCTION

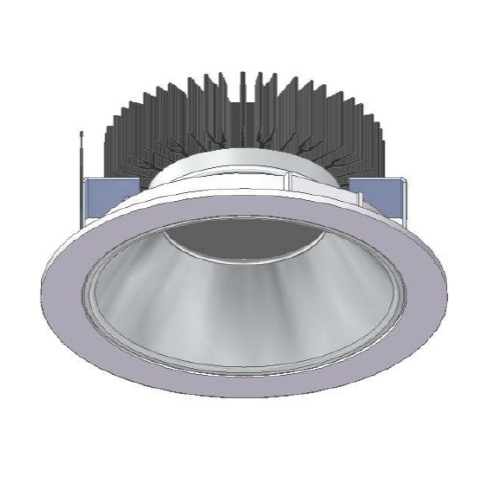

• Low glare deep recessed down lighter for soft down lighting.
• Construction in die cast aluminium frame with 2 point support system.
• Polyester powder coated with high U.V. resistance & corrosion.
• Reflector aluminium 99.9% silver bright anodized.
• Extruded aluminium for better heat sink.
• Fixture holding system using stainless steel -304 fastening springs
• Strain relief cable clamp.
• Wire for mains supply cable upto 2c×1.5mm².
OPTICAL
Heat Dispersion: Extruded Heat Sink
IP Rating: IP 20
LED Type: COB
Mounting: SS spring
Ambient Temp: -10 to 45 C
ELECTRICAL
Input Wattage: 8/12/15W
Input Voltage: 240V AC
Light Output: >110m/W
CCT: 2700/3000/4000/6000K
OPTICS: 25v SYMETRIC
CRI: >90
PF: >0.95
THD: <10%
Current Ripple: <5%
Surge Protection: >3k
