CONSTRUCTION

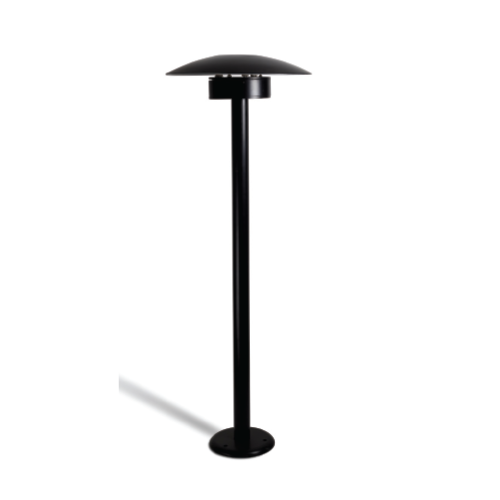

• The mushroom gives extremely wide & even light pattern, allows the fixture to be placed near pathways & gardens, to highlight foliage
• Construction in extruded aluminium
• Polyester powder coated with high U.V. & corrosion resistance
• Silicone gasket for moisture protection
• Toughened extra clear polycarbonate 3.2mm
• Extruded aluminium for better heatsink of LED
• Stainless steel 304 anchorage fasteners for concrete mounting
• All hardware is SS-304
• Mains supply cable upto 3c×1.5mm²
• IP-67 connector provided cable O.D. 6-10mm
• Reiz Electronic LED driver constant current integrated, PF>0.95, THD<10%, Flicker <10%
• LED CRI : 85
OPTICAL
- LED Type: SMD Ceramic
- Ambient Temp.: -10°C to 45°C
- CCT: 2700/3000/4000/6000K
- CRI: >90, R9 >60
- Diffuser: PMMA UV Stabilised
ELECTRICAL
- Input Wattage: 8/12W
- Input Voltage: 24 VDC / 240 VAC
- Light Output: >100lm/W
- Surge Protection: 3 kV
- Dimming Options: 1-10V, DALI, Bluetooth
- Flicker-Free: <5% Ripple
- REIZ LED Driver:
- PF >0.95
- THD <10%
- BIS No.: R-91000078
- IP67 Rated
- Warranty: 5 Years
- Lifetime: L80 B20 @ 50,000 hours
