CONSTRUCTION

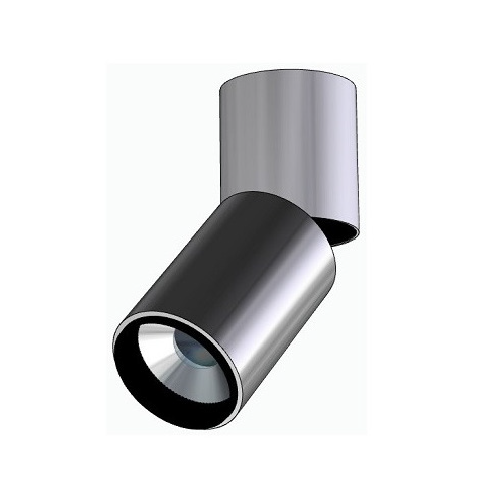

• Surface mounting directional spot light tilting Up to ±45º
• Construction in extruded aluminum for better heat sink of LED
• Double polyester powder coated with high U.V. & corrosion resistance
• Fixture holding system using Stainless Steel -304 Screw & rawal plug
• Strain relief cable clamp
• Quick connect cable connector for driver detachment
OPTICAL
- LED Type: COB (Chip on Board)
- Ambient Temperature: -10°C to 45°C
- CCT (Correlated Color Temperature): 2700K, 3000K, 4000K, 6000K
- CRI (Color Rendering Index): >90, R9 >60
- Low Glare: UGR <10
- Optional Features:Tunable White LED
- Reflector: Polycarbonate lens
ELECTRICAL
- Input Wattage: 8W
- Light Output: >110lm/W
- REIZ LED Driver: PF >0.95, THD <10%, BIS No. R-91000078
- Surge Protection: 3kV
- Dimming Options: Phase cut, 1-10V, PWM, DALI, Bluetooth
- Flicker Free: <5% Ripple
- Warranty: 5 years
- Lifetime: L90 B10 @ 50,000 hours
