CONSTRUCTION

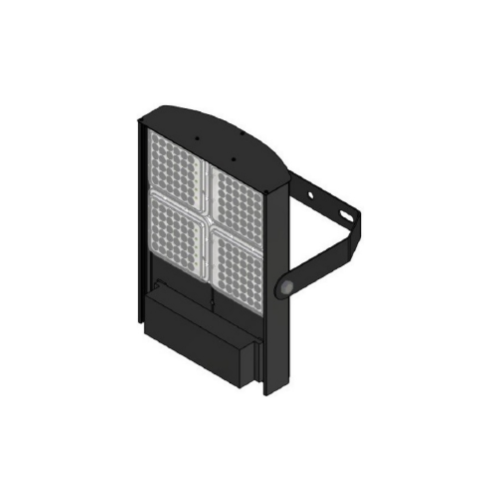

• LED luminaire for wide area low glare sports lighting
• Construction with extruded aluminium and pressed SS 304 Sheet
• Extruded aluminium for better heat sink of LED
• Fixture holding system using Stainless Steel -304 Allen key Bolt M10
• Anodised for corrosion resistance
• Strain relief cable Gland IP68 with quick connect terminal block
• Wire for mains supply cable upto 3c×1.5mm2
• Nema rated optical lens for low glare light
• SPD of 10kv is integrated
• For quick driver disconnect
OPTICAL
- LED Type: SMD
- Ambient Temp.: -10°C to 45°C
- CCT: 2700/3000/4000/6000K
- CRI: >90
- Low Glare: UGR <14, NEMA Lens
ELECTRICAL
- Input Wattage: 100/150/200/300W
- Light Output: >120lm/W
- Surge Protection: 10 kV SPD
- Dimming Options: 1-10V, DALI, DMX, Bluetooth
- Flicker-Free: <5% Ripple
- PF: >0.95
- THD: <10%
- Warranty: 5 Years
