CONSTRUCTION
• Low glare deep recessed down lighter for soft down lighting.
• Construction in die cast aluminium frame with 2 point support system.
• Aluminium pressure die casting for better heat sink of LED.
• Fixture holding system using stainless steel -304 fastening spring.
• Polarised quick connector for easy driver connection.
• Wire for mains supply cable up to 2c×1.5 mm².
• Reiz electronic transformer is integrated, PF>0.95% THD <10%.

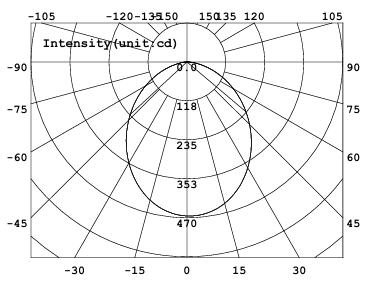

OPTICAL
Housing: Aluminium
Heat Dispersion: Die cast Aluminium
IP Rating: IP 20
LED Type: SMD Ceramic
Mounting: 304 fastening springs
Ambient Temp.: -10v to 45v C
Warranty: 5 Years
ELECTRICAL
Input Wattage: 6/8/10/12W
Input Voltage: 240 V AC
Light Output: >110lm/W
CCT: 2700/3000/4000/6000K
CRI: >80/>90
PF: >0.95
THD: <10%
Current Ripple: <10%
Surge Protection: 3kv
